Install the Control Tower

1. Prepare Environment Variables

Click the tabs below to see what fields are required based on your setup.

1.1. Prepare required fields

Field Name	Secret Name	Description
fc_api_key	FC_API_KEY	Your Flightcrew API key is a unique, private key that can be found after signing up in your Flightcrew account. The same key should be used for all Control Towers.

1.2. Prepare infrastructure fields

Amazon Elastic KubernetesService (EKS)

Field Name	Secret Name	Description
cluster_name	n/a	The name of your Kubernetes cluster, which can be found by using aws eks list-clusters. If you are using an external observability provider, ensure that this name matches what you've entered there.
cloud_provider	n/a	Use provider:aws/platform:eks

Google KubernetesEngine (GKE)

Field Name	Secret Name	Description
cluster_name	n/a	The name of your Kubernetes cluster, which can be found by using gcloud container clusters list. If you are using an external observability provider, ensure that this name matches what you've entered there.
cloud_provider	n/a	Use provider:gcp/platform:gke

Self-hosted Kubernetes(Bare Metal)

Field Name	Secret Name	Description
cluster_name	n/a	The name of your Kubernetes cluster. If you are using an external observability provider, ensure that this name matches what you've entered there.
cloud_provider	n/a	Use provider:self/platform:kubernetes

1.3. Prepare observability fields

Datadog

Field Name	Secret Name	Description
metric_providers	n/a	Use datadog
datadog_api_key	DD_API_KEY	API key created in the Datadog setup steps
datadog_app_key	DD_APP_KEY	Application key created in the Datadog setup steps

Observe

Field Name	Secret Name	Description
metric_providers	n/a	Use observe
observe_api_token	OBSERVE_API_TOKEN	API Token created in the Observe setup steps
observe_cluster	OBSERVE_CLUSTER	Cluster created in the Observe setup steps
observe_customer_id	OBSERVE_CUSTOMER_ID	Customer ID created in the Observe setup steps
observe_dataset_id	OBSERVE_DATASET_ID	Dataset ID created in the Observe setup steps
observe_domain	OBSERVE_DOMAIN	Domain created in the Observe setup steps

Prometheus

Field Name	Secret Name	Description
metric_providers	n/a	Use prometheus
prometheus_url	n/a	The Control Tower reads from the DNS name for the Prometheus service, in the form http://[SERVICE].[NAMESPACE].svc.cluster.local:[PORT], where: SERVICE=Prometheus service name NAMESPACE=Its namespace PORT=spec.ports.port from the Prometheus service config The final URL should look something like http://prometheus-service.monitoring.svc.cluster.local:9090

Stackdriver

Field Name	Secret Name	Description
metric_providers	n/a	Use stackdriver
stackdriver_service_account	n/a	Set to the service account created in the Stackdriver setup steps which should look like iam.gke.io/gcp-service-account=flightcrew-monitoring-viewer@PROJECT_NAME.iam.gserviceaccount.com

SumoLogic

Field Name	Secret Name	Description
metric_providers	n/a	Use sumologic
sumo_access_id	SUMO_ACCESS_ID	Access ID created in the Sumo Logic setup steps
sumo_access_key	SUMO_ACCESS_KEY	Access Key created in the Sumo Logic setup steps
sumo_cluster_display_name	SUMO_CLUSTER_DISPLAY_NAME	Cluster name, described in Sumo Logic verification steps
sumo_region_code	SUMO_REGION_CODE	Region code, described in Sumo Logic verification steps

2. (recommended) Secret Management

The Helm chart requires some values to be set to reach Flightcrew's backend and your metric provider. Some of these are potentially sensitive API keys, so we recommend storing them in your Secret Manager and creating a Kubernetes Secret object to reference the values. The Helm chart can then access this existing secret using the --set existingSecretName="flightcrew-secrets-name" option. Reference the Secret Name column in the required environment variables above to figure out which should be used in the data field, like this:

Otherwise, it is possible to enter the values into the Helm chart as plaintext and it will create a Secret object automatically, but this is the less secure option.

apiVersion: v1
kind: Secret
metadata:
  name: fc-tokens
  namespace: flightcrew
type: Opaque
data:
  FC_API_KEY: <base64-encoded-API-key>
  # other secrets as mentioned in part 1 above
  ...

3. Install the Control Tower

The Control Tower Helm chart provides an additional field --set userLabels.<label>=<value> to add custom labels to the Control Tower deployment. For example, to add the env=prod label, add --set userLabels.env=prod to the command.

Using Helm (via plaintext CLI)

Install the Helm chart via the commandline using plaintext values.

# Get the Helm chart
helm repo add flightcrew https://flightcrew-helm-charts.storage.googleapis.com/control-tower/stable
helm repo update

When providing values to the Helm chart, please refer to the "Field Name" column from the environment variable sections above. You'll pass values in by adding --set "<field_name>=<value>" to the command.

# Construct the command
helm install control-tower flightcrew/control-tower \
  --namespace flightcrew --create-namespace \
  --set "<field_name1>=<value1>" \
  --set "<field_name2>=<value2>"

Here's an example for EKS and Datadog:

helm repo add flightcrew https://flightcrew-helm-charts.storage.googleapis.com/control-tower/stable
helm repo update
helm install control-tower flightcrew/control-tower \
  --namespace flightcrew --create-namespace \
  --set cluster_name=my-prod-cluster \
  --set cloud_provider=provider:aws/platform:eks \
  --set metric_providers="datadog" \
  --set datadog_api_key="api_key" \
  --set datadog_app_key="app_key"

Using Helm (via CLI reusing secret)

Install the Helm chart via the commandline by reusing an existing secret.

# Get the Helm chart
helm repo add flightcrew https://flightcrew-helm-charts.storage.googleapis.com/control-tower/stable
helm repo update

When providing values to the Secret, please refer to the "Secret Name" column from the environment variable sections above. You'll set values in the Secret by adding <field_name>: <value> under data: in the YAML below.

apiVersion: v1
kind: Secret
metadata:
  name: flightcrew-secrets
  namespace: flightcrew
type: Opaque
data:
  <secret_name1>: <value1>
  <secret_name2>: <value2>

When providing values to the Helm chart, please refer to the "Field Name" column from the environment variable sections above. You'll pass values in by adding --set "<field_name>=<value>" to the command.

# Construct the command
helm install control-tower flightcrew/control-tower \
  --namespace flightcrew \
  --set existingSecretName="flightcrew-secrets" \
  --set "<field_name1>=<value1>" \
  --set "<field_name2>=<value2>"

Here's an example for EKS and Datadog:

apiVersion: v1
kind: Secret
metadata:
  name: flightcrew-secrets
  namespace: flightcrew
type: Opaque
data:
  DD_API_KEY: api_key
  DD_APP_KEY: app_key

helm repo add flightcrew https://flightcrew-helm-charts.storage.googleapis.com/control-tower/stable
helm repo update
helm install control-tower flightcrew/control-tower \
  --namespace flightcrew --create-namespace \
  --set cluster_name=my-prod-cluster \
  --set cloud_provider=provider:aws/platform:eks \
  --set metric_providers="datadog" \
  --set existingSecretName="flightcrew-secrets"

Using Helm (via Terraform)

This example below shows how to set up the .tf file with Amazon EKS and Sumo Logic. Replace the values to match your setup, and then run terraform apply.

resource "helm_release" "flightcrew" {
  name             = "control-tower"
  namespace        = "flightcrew"
  repository       = "https://flightcrew-helm-charts.storage.googleapis.com/control-tower/stable"
  chart            = "control-tower"
  create_namespace = true

  set {
    name  = "fc_api_key"
    value = var.FC_API_KEY
  }

  set {
    name  = "cluster_name"
    value = var.cluster_name
  }

  set {
    name  = "cloud_provider"
    value = "provider:aws/platform:eks"
  }

  set {
    name  = "metric_providers"
    value = "sumologic"
  }

  set {
    name  = "sumo_access_id"
    value = var.SUMOLOGIC_ACCESSID
  }

  set {
    name  = "sumo_access_key"
    value = var.SUMOLOGIC_ACCESSKEY
  }

  set {
    name  = "sumo_cluster_display_name"
    value = var.cluster_name
  }

  set {
    name  = "sumo_region_code"
    value = "us2"
  }
}

4. Confirm Install

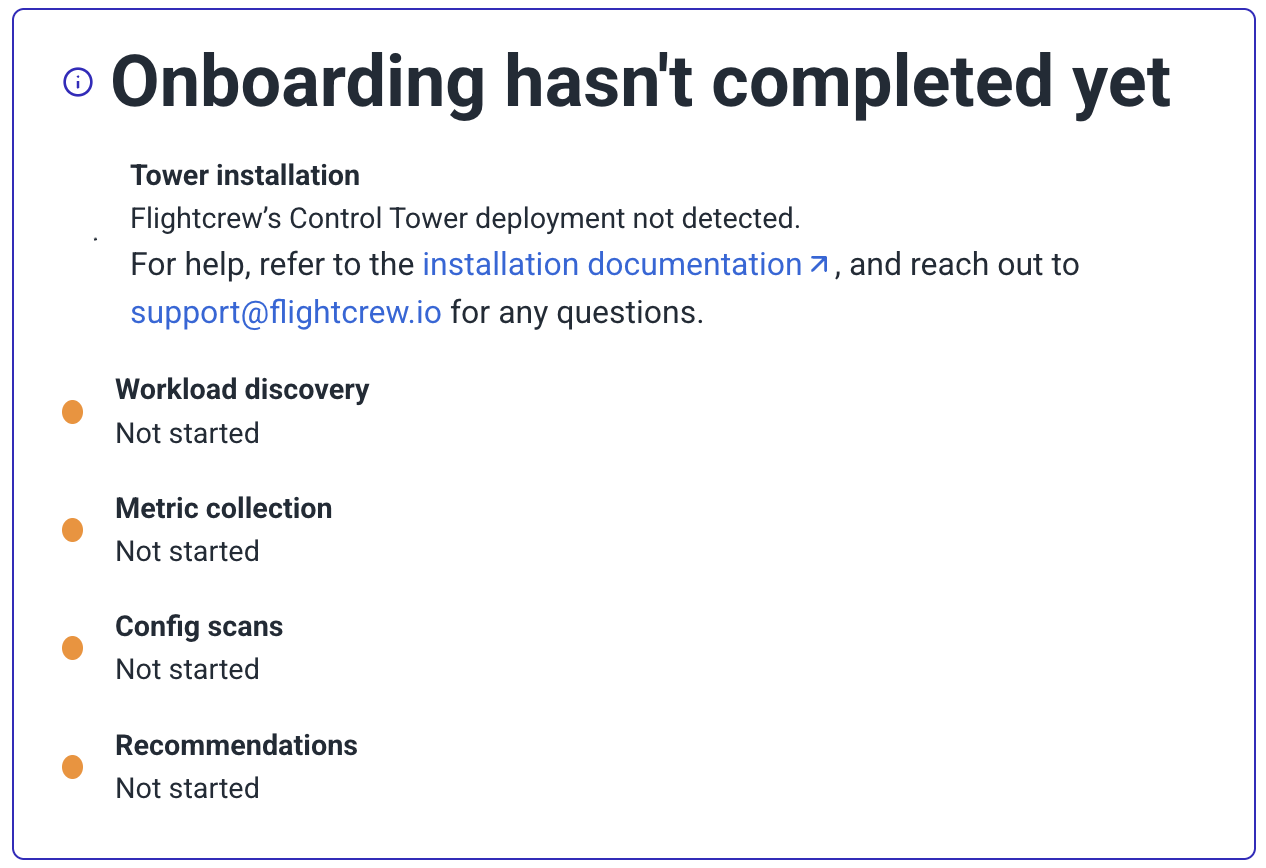

After a minute or two, your Kubernetes resources and metrics should begin to populate in the Flightcrew dashboard.

Flightcrew will take a few hours to build a full understanding of your cloud infrastructure and begin surfacing insights. Recommendations will continue to improve with time after gathering more and more data.

Click into the dashboard to follow your progress in real-time.

Troubleshooting

CrashLoopBackOff

The Control Tower will fail loudly if it's misconfigured or cannot reach the APIs it needs. Run the following command to check the error logs:

kubectl logs deployment/control-tower --namespace flightcrew --previous --tail=20

Feel free to send the error logs to the Flightcrew team on Slack or support@flightcrew.io for help debugging.

Out of Memory

Resource usage will vary slightly depending on the size of the cluster. Memory usage very rarely exceeds 500Mi, but if the pod is hitting its memory limit and getting OOMKilled, the resources can be increased by updating fields on the Helm chart, for example:

helm upgrade control-tower flightcrew/control-tower --namespace flightcrew --reuse-values \
--set resources.limits.memory="2000Mi" \
--set resources.requests.memory="1000Mi"

Please still reach out to support@flightcrew.io if this happens, so we can take a closer look as something else may be going wrong.
